Platinum-Coated Titanium Mesh Anodes: An Efficient Solution for Electrolysis Processes

Platinum-coated titanium mesh anodes combine the structural strength of titanium with the exceptional catalytic properties of platinum, demonstrating unique advantages in the electrochemical field. This specially designed electrode not only improves electrolysis efficiency but also provides a reliable and durable technological option for various industrial sectors.

Material Characteristics: The Perfect Combination of Platinum and Titanium

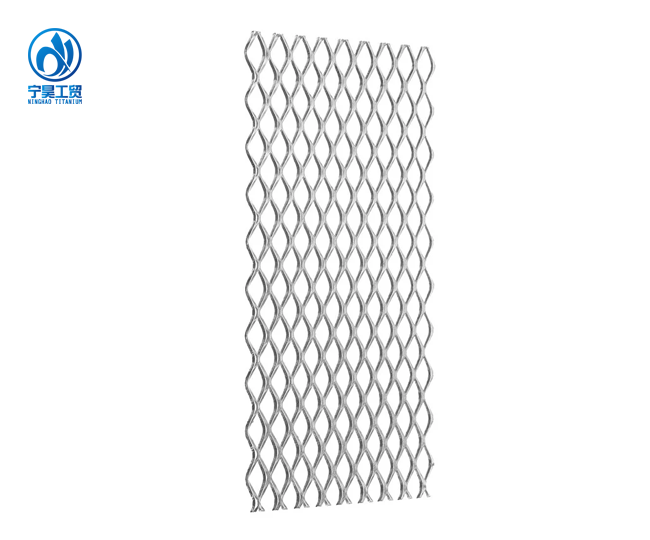

The core of platinum-coated titanium mesh anodes lies in their dual-layer structure:

• Titanium Mesh Structure: high quality titanium alloys (such as industrial pure titanium), providing mechanical support and conductive pathways.

• Platinum Catalytic Coating: A 2–5 μm platinum layer formed through electroplating or physical vapor deposition, offering excellent catalytic activity.

The mesh design offers clear advantages over solid plate electrodes:

• Surface area increased by 30–50%, enhancing reaction efficiency.

• Open structure promotes electrolyte flow and prevents bubble accumulation.

• Weight reduced by 40–60%, lowering installation difficulty.

​​​​​​​

Application Areas and Performance Advantages

Water Treatment and Disinfection
In electrolytic disinfection systems, platinum-coated titanium mesh anodes efficiently generate strong oxidants such as ozone and hydrogen peroxide. Their low overpotential reduces energy consumption by 15–25%, while the corrosion resistance of the titanium substrate ensures long-term stable operation in chlorine-containing environments.

Precious Metal Recovery and Refining
For electrolytic extraction of precious metals like gold and silver, platinum-coated anodes demonstrate:

• Current efficiency exceeding 98%.

• Product purity reaching 99.99%.

• Annual loss rate below 0.1 g/m² in cyanide electrolytes.

Chlor-Alkali Industry
In ion-exchange membrane chlor-alkali production, platinum-coated titanium mesh anodes offer advantages including:

• Chlorine evolution overpotential reduced to below 1.13 V.

• Service life of up to 8–10 years.

• Capability to operate at high current densities of 3–6 kA/m².

New Energy Sector
As core components of proton exchange membrane (PEM) electrolyzers:

• Oxygen evolution reaction (OER) overpotential as low as 280 mV.

• Stable operation in highly acidic environments for over 10,000 hours.

• Provision of reliable electrode materials for green hydrogen production.

Economic and Environmental Benefits

Long-Term Cost Advantages

Environmental Features

• Minimal platinum usage (only 2–5 g per square meter), ensuring high resource utilization.

• 100% recyclable titanium substrate.

• No leaching of harmful substances, compliant with RoHS standards.

• Improved energy efficiency reduces carbon footprint.

Technological Development Trends

Intelligent Electrode Systems
A new generation of platinum-coated titanium mesh anodes is integrating sensor technology to achieve:

• Real-time monitoring of coating wear.

• Automatic optimization of operating parameters.

• Predictive maintenance alerts.

Material Innovations

• Platinum alloy coatings (e.g., Pt-Ir, Pt-Ru) enhance selectivity for specific reactions.

• Nanostructure design increases active catalytic sites.

• Gradient coating technology improves bonding strength.

Selection and Usage Recommendations

Application Matching Principles

• High Purity Requirements: Choose dense platinum coatings (>4 μm).

• High Current Density Applications: Use reinforced titanium mesh substrates.

• Corrosive Environments: Incorporate intermediate transition layer designs.

Installation Considerations

1. Ensure uniform current distribution design.

2. Use galvanic corrosion-resistant connection methods.

3. Establish regular potential monitoring mechanisms.

Maintenance Standards

• Quarterly inspections of coating integrity.

• Annual electrochemical performance testing.

• Develop electrode lifespan prediction models.

Conclusion

Platinum-coated titanium mesh anodes, with their unique design and performance advantages, are driving electrolysis technology toward greater efficiency and sustainability. Although the initial investment is higher, their comprehensive value in efficiency improvement, extended lifespan, and simplified operation and maintenance makes them an ideal choice for modern electrochemical industries.

BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. specializes in the customized production and technical support of platinum-coated titanium mesh anodes, offering optimized design solutions based on specific customer process requirements. For more technical information or sample testing, please contact: sales02@nh-ti.com.

References

1. International Journal of Hydrogen Energy. (2023). Performance of Pt-coated Ti Mesh Anodes in PEM Water Electrolysis.

2. Electrochimica Acta. (2022). Durability Enhancement of Platinum-coated Titanium Anodes through Surface Engineering.

3. Journal of Applied Electrochemistry. (2023). Comparative Study of Mesh vs. Plate Anodes in Industrial Electrolysis.

4. ACS Sustainable Chemistry & Engineering. (2022). Life Cycle Assessment of Platinum-based Electrodes in Electrochemical Processes.
