astm f67 medical titanium rods
2. Diameter Ø2–80mm, length 100–1000mm.
3. Tensile strength ≥ 485MPa, yield ≥ 345MPa.
4. Non-magnetic, MRI safe.
5. Biocompatible, safe for implants.
- Product Description
Product Introduction

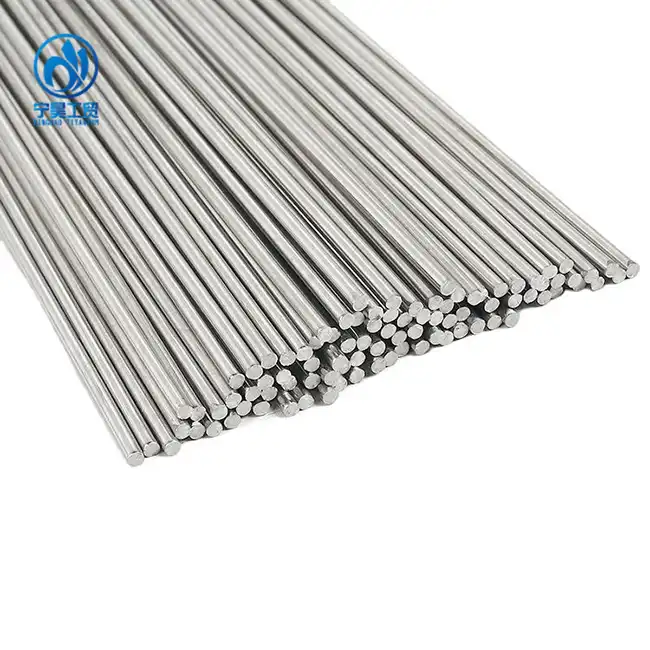

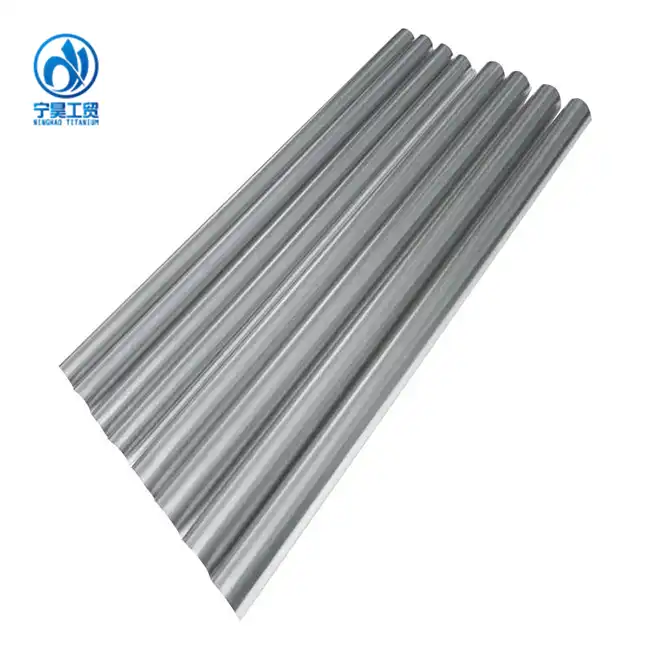

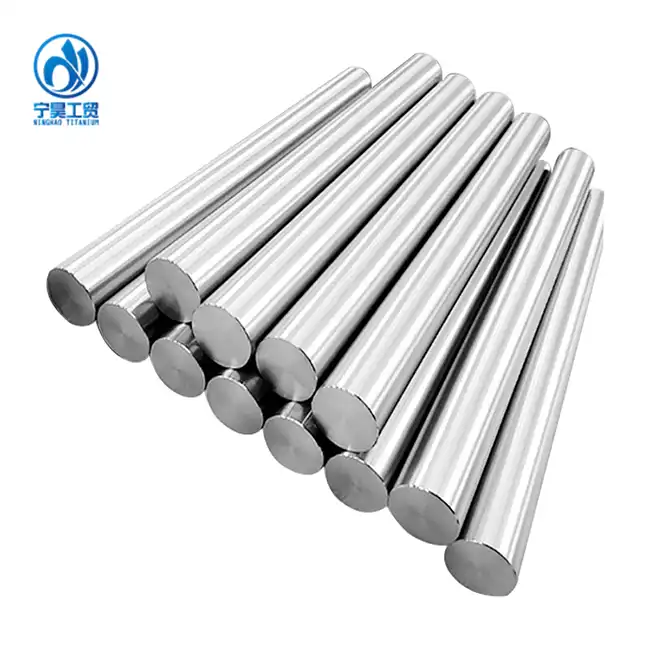

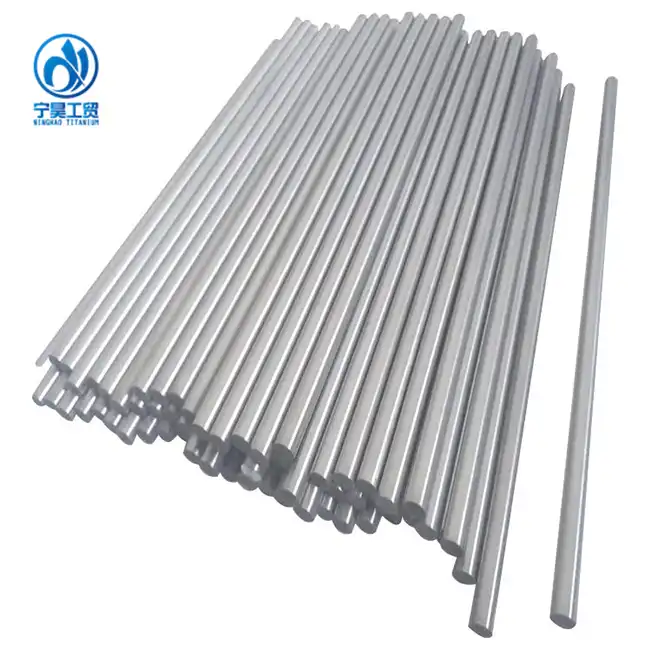

ASTM F67 Medical Titanium Rods are high-purity, commercially pure titanium (Grade 1) rods specifically designed for medical and dental applications. Known for their excellent corrosion resistance, biocompatibility, and mechanical performance, these rods are ideal for surgical implants, orthopedic devices, dental implants, and other precision medical instruments.
Manufactured according to ASTM F67 standards, these rods ensure consistent quality and performance. They are available in a variety of diameters and lengths, including customizable options to meet the specific requirements of medical device manufacturers.
 |  |  |  |
Key Features and Benefits
Superior Biocompatibility: Safe for implantation and medical use, minimizing risks of adverse tissue reactions.
High Corrosion Resistance: Maintains integrity when exposed to body fluids and sterilization processes.
Lightweight Yet Strong: Ideal for surgical implants requiring high strength-to-weight ratio.
Dimensional Accuracy: Manufactured to precise tolerances for reliable medical applications.
Customizable Options: Can be produced in various diameters, lengths, and shapes per OEM specifications.
Product Features
Material: ASTM F67 Grade 1 titanium (commercially pure)
Shape: Round rods (other custom geometries available)
Diameter: 1 mm – 50 mm (customizable)
Length: 50 mm – 500 mm (customizable)
Surface Finish: Polished, matte, or passivated
Certification: ASTM F67 compliance and ISO 10993 biocompatibility
Technical Specifications
| Property | Specification |
|---|---|
| Material | ASTM F67 Grade 1 Titanium |
| Diameter | 1 mm – 50 mm |
| Length | 50 mm – 500 mm |
| Hardness | HV 160–180 |
| Tensile Strength | 240–370 MPa |
| Yield Strength | ≥170 MPa |
| Elongation | ≥24% |
| Density | 4.51 g/cm³ |
| Biocompatibility | ISO 10993 |
| Surface Finish | Polished, Matte, Passivated |
Applications and Industries
ASTM F67 medical titanium rods are widely used in:
Orthopedic implants (bone plates, screws, nails)
Dental implants and abutments
Surgical instruments and medical tools
Prosthetic devices requiring biocompatible materials
Research and development for advanced medical devices
Packaging and Shipping
Individually wrapped and labeled for contamination-free handling
Protective packaging for safe global shipment
Optional sterilization available before shipment
Worldwide delivery via air, sea, or express courier
FAQs
Q1: What is ASTM F67 compliance?
A1: ASTM F67 specifies the standard for unalloyed titanium used in surgical implants, ensuring purity, mechanical performance, and biocompatibility.
Q2: Can you supply custom lengths and diameters?
A2: Yes, we provide full OEM customization to meet your exact specifications.
Q3: Are these rods suitable for sterilization?
A3: Yes, ASTM F67 titanium rods are highly resistant to sterilization procedures.
Q4: Do you provide certification reports?
A4: Yes, all rods come with ASTM F67 compliance certificates and biocompatibility test reports.
