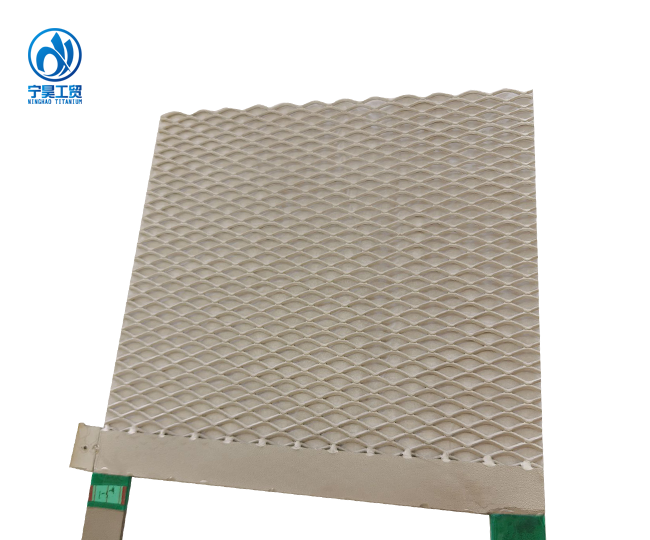

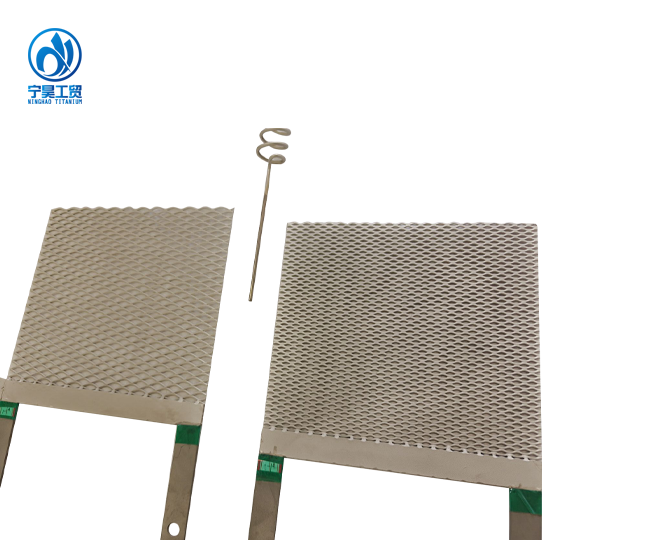

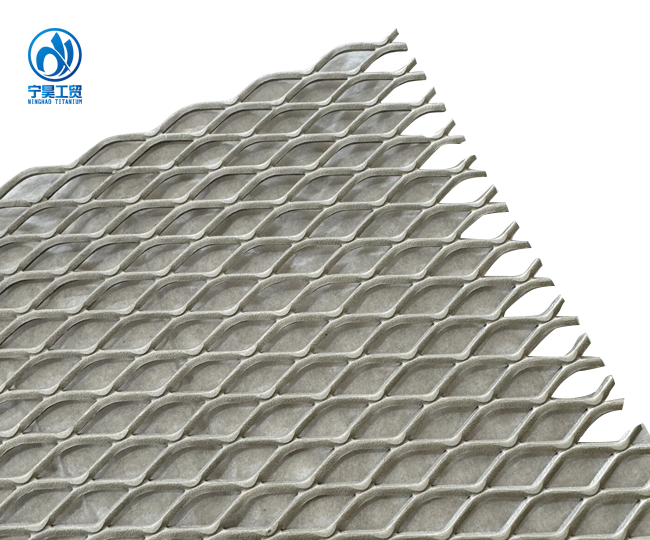

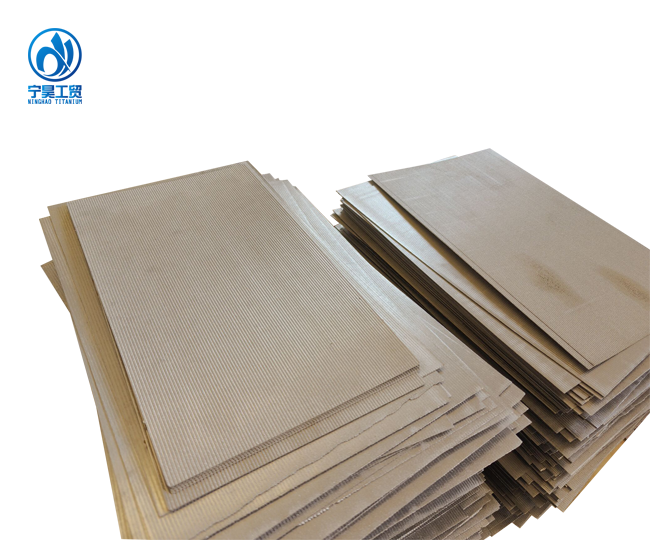

Titanium platinum-plated electrode for electrolysis of hydrogen-rich water
Coating: Pure Platinum (≥99.9%)
Plating Thickness: 3–10 microns
Dimensions: 100×150 mm standard (customizable)
Water Type: Pure, RO, or mineral water
Operating Voltage: 1.5–3 V
Hydrogen Concentration: Up to 1200 ppb
Service Life: ≥5 years under daily use
Application: Alkaline hydrogen-rich water generators
- Product Description
Titanium Platinum-Plated Electrode for Electrolysis of Hydrogen-Rich Water
BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. is a leading manufacturer and supplier of Titanium platinum-plated electrode for electrolysis of hydrogen-rich water. Our advanced electrodes offer superior performance, durability, and efficiency for various applications. With our expertise in titanium processing and innovative coating techniques, we deliver high-quality electrodes that meet the demanding requirements of hydrogen-rich water production.
Product Introduction
Our product is a cutting-edge solution designed to enhance the efficiency and effectiveness of hydrogen generation systems. These electrodes combine the strength and corrosion resistance of titanium with the catalytic properties of platinum, resulting in a superior product for electrolyzing water and producing hydrogen-rich water.
Key Features and Benefits
1. High Catalytic Activity: The platinum coating significantly improves the electrode's catalytic performance, enhancing hydrogen generation efficiency.
2. Corrosion Resistance: Titanium's natural resistance to corrosion ensures longevity and consistent performance in various electrolyte environments.
3. Low Overpotential: Our electrodes require less energy to initiate and maintain the electrolysis process, improving overall system efficiency.
4. Durability: The combination of titanium and platinum creates a robust electrode that withstands prolonged use in demanding conditions.
5. Uniform Coating: Our advanced plating techniques ensure an even distribution of platinum, maximizing the electrode's active surface area.
6. Customizable Dimensions: We offer electrodes in various sizes and shapes to fit different electrolysis systems and applications.
OEM and Customization Services: Customized Geometries and Exact Dimensions
At BAOJI NINGHAO, we understand that one size doesn't fit all. Our OEM and customization services allow you to tailor our titanium platinum-plated electrodes to your specific requirements:
1. Custom Sizes: We can produce electrodes in various lengths, widths, and thicknesses to fit your unique system designs.
2. Specialized Shapes: From flat plates to cylindrical designs, we can create electrodes in shapes that optimize your electrolysis process.
3. Coating Thickness: Adjust the platinum coating thickness to balance performance and cost-effectiveness for your application.
4. Surface Treatments: We offer additional surface treatments to enhance specific properties like wettability or conductivity.
5. Connector Options: Choose from various connection methods to ensure seamless integration with your existing equipment.
R&D experience
customized solution cases
strict quality inspection processes
hour customer response service
· Base Material: Grade 1 or Grade 2 Titanium
· Coating: High-purity Platinum (99.99%)
· Coating Thickness: 2.5-5 µm (customizable)
· Available Sizes: 50mm x 100mm to 500mm x 1000mm (custom sizes available)
· Operating Temperature Range: 0°C to 80°C
· pH Tolerance: 2-12
· Current Density: Up to 1000 A/m²
· Hydrogen Evolution Overpotential: < 50 mV at 10 mA/cm²
Applications and Industries
Our Titanium platinum-plated electrode for electrolysis of hydrogen-rich water find applications in various industries:
1. Health and Wellness: Production of hydrogen-rich water for consumption and therapeutic applications.
2. Medical Devices: Integration into medical-grade hydrogen water generators for clinical use.
3. Water Treatment: Advanced oxidation processes and contaminant removal systems.
4. Research and Development: Laboratory-scale hydrogen production and water electrolysis studies.
5. Industrial Processes: Large-scale hydrogen generation for various industrial applications.
6. Beverage Industry: Production of hydrogen-infused beverages.
Tips and Tricks
To maximize the performance and lifespan of your titanium platinum-plated electrodes:
1. Maintain proper electrolyte concentration and pH levels.
2. Regularly clean electrodes to remove mineral deposits and ensure optimal performance.
3. Implement a maintenance schedule to check for wear and replace electrodes as needed.
4. Use pure water in your electrolysis system to minimize contaminants and extend electrode life.
5. Optimize your power supply settings to balance efficiency and electrode longevity.
Manufacturing Process
Our titanium platinum-plated electrodes undergo a rigorous manufacturing process:
1. Titanium Substrate Preparation: Cutting, shaping, and surface treatment of high-grade titanium.
2. Surface Activation: Chemical etching to optimize surface characteristics for platinum adhesion.
3. Platinum Electroplating: Precision-controlled electrodeposition of platinum onto the titanium substrate.
4. Quality Inspection: Thorough examination of coating uniformity, thickness, and adhesion.
5. Performance Testing: Electrochemical testing to verify catalytic activity and efficiency.
6. Final Packaging: Careful packaging to protect electrodes during shipping and storage.
How to Choose Products and Why Choose Products Made by Us
When selecting titanium platinum-plated electrodes for electrolysis of hydrogen-rich water, consider:
1. Application Requirements: Match electrode specifications to your specific use case.
2. System Compatibility: Ensure the electrode dimensions and connections fit your existing equipment.
3. Performance Metrics: Compare catalytic activity, efficiency, and lifespan across options.
4. Customization Needs: Choose a supplier capable of tailoring electrodes to your unique requirements.
5. Quality Assurance: Look for rigorous testing and quality control processes.
Choose BAOJI NINGHAO for:
1. Expertise: Our deep knowledge of titanium processing and platinum plating ensures superior products.
2. Customization: We offer flexible OEM services to meet your exact specifications.
3. Quality Control: Our stringent quality assurance processes guarantee consistent, high-performance electrodes.
4. Innovation: We continuously improve our products based on customer feedback and industry advancements.
5. Customer Support: Our technical team provides comprehensive pre- and post-sale support.
Certifications and Compliance
Our titanium platinum-plated electrodes meet or exceed industry standards:
· ISO 9001:2015 Quality Management System
· RoHS Compliant
· REACH Registered
· FDA Compliant (for relevant applications)
Quality Control and Testing
We implement rigorous quality control measures:
1. Raw Material Inspection: Ensure high-purity titanium and platinum sources.
2. In-Process Checks: Monitor coating thickness and uniformity during production.
3. Electrochemical Testing: Verify catalytic performance and efficiency.
4. Adhesion Tests: Ensure long-term durability of the platinum coating.
5. Chemical Resistance Testing: Validate performance in various electrolyte conditions.
Packaging and Shipping
Our electrodes are carefully packaged to prevent damage during transit:
1. Individual Protective Wrapping: Each electrode is wrapped in soft, non-abrasive material.
2. Shock-Absorbent Packaging: Custom-designed boxes with foam inserts for maximum protection.
3. Moisture-Proof Sealing: Vacuum-sealed packages to prevent oxidation during storage and shipping.
4. Clear Labeling: Detailed product information and handling instructions on each package.
5. Global Logistics: We offer various shipping options to ensure timely delivery worldwide.
Testimonials and Case Studies
"BAOJI NINGHAO's titanium platinum-plated electrodes have significantly improved the efficiency of our hydrogen-rich water production system. Their customization services allowed us to optimize our electrode design, resulting in a 20% increase in output." - Dr. Zhang, R&D Director, Health Tech Innovations
"We've been using BAOJI NINGHAO electrodes in our medical-grade hydrogen water generators for over two years. The consistent quality and excellent after-sales support have made them our go-to supplier." - Sarah Johnson, Procurement Manager, MedAqua Systems
FAQs
Q: What is the typical lifespan of your titanium platinum-plated electrodes?
A: Under normal operating conditions, our electrodes typically last 3-5 years, depending on usage patterns and maintenance.
Q: Can these electrodes be used in saltwater electrolysis?
A: Yes, our electrodes are designed to withstand various electrolyte compositions, including saltwater solutions.
Q: Do you offer sample products for testing?
A: Absolutely! We provide sample electrodes for customers to evaluate performance in their specific applications.
Q: What is the lead time for custom orders?
A: Lead times vary based on specifications and quantity, but typically range from 2-4 weeks for custom orders.
Q: Are your electrodes suitable for small-scale, home-use hydrogen water generators?
A: Yes, we offer smaller-sized electrodes suitable for compact, home-use devices.
