Understanding Linear Anodes: Structural Features and the Technological Innovation of Flexible Anodes

June 2, 2026

Linear anodes, as a critical electrochemical component, play an indispensable role in numerous industrial fields. Particularly, flexible linear anodes are pushing the boundaries of electrochemical technology applications with their unique deformable structures and outstanding performance.

Linear Anodes: Structural Characteristics and Functional Principles

Linear anodes typically refer to electrodes with elongated structures, including rod, wire, or strip forms. Their core design objective is to achieve uniform current distribution along the electrode length, thereby maintaining stable reaction efficiency in large-area or long-distance electrochemical applications.

Typical structures include:

Conductive Substrate: Usually made of corrosion-resistant metals such as titanium or niobium, combining good conductivity with mechanical strength.
Catalytic Coating: Coatings like Mixed Metal Oxides (MMO) enhance electrocatalytic activity and electrode lifespan.
Insulation/Protective Layer: Some designs incorporate outer protective layers to suit special working conditions.

In electrochemical reactions, linear anodes act as the positive electrode where oxidation occurs, with electrons transferred to the cathode via an external circuit. Their performance primarily depends on the substrate's conductivity, the coating's catalytic activity, and the structural stability.

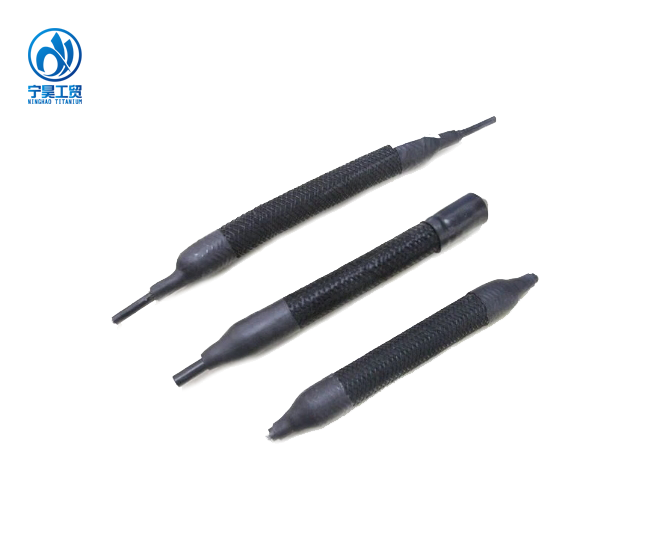

blog-1-1

Flexible Linear Anodes: Technological Breakthroughs and Application Advantages

Through innovative material and structural design, flexible linear anodes achieve a balance between rigidity and flexibility, serving as an important complement to traditional rigid anodes. Their core technical features include:

Structural Design Innovations

Use of flexible substrates such as titanium wire ropes or conductive polymers.
Enhanced mechanical toughness through braiding or composite processes.
Robust bonding technology between catalytic coatings and flexible substrates.

Performance Advantages

Strong Spatial Adaptability: Can bend to conform to complex surfaces (e.g., pipelines, container interiors).
Easy Installation: Supports flexible installation methods such as coiling or threading, reducing construction difficulty.
Uniform Current Distribution: Maintains even current output even in non-planar structures.
Resistance to Mechanical Stress: Withstands operating conditions such as vibration and deformation, reducing fracture risks.
High Customization Flexibility: Length, diameter, and flexibility can be adjusted according to application scenarios.

Primary Application Areas

Application Area	Specific Scenarios	Core Value
Cathodic Protection	Long-distance pipelines, tank bottoms, offshore platforms	Achieves uniform protection on curved surfaces, reduces shielded areas.
Water Treatment	Electrolytic oxidation reactors, electro-Fenton systems	Improves reactor space utilization, enhances mass transfer efficiency.
Soil Remediation	Electrokinetic remediation, in-situ pollutant degradation	Enables three-dimensional current coverage in contaminated areas.
Electrochemical Synthesis	Organic electrosynthesis, electrodeposition processes	Optimizes electrode arrangement in reactors, improves product uniformity.
Special Industrial Scenarios	Curved reactors, mobile treatment equipment	Adapts to non-standard equipment structures, expands process design space.

Technological Development Trends
Current flexible linear anode technology is evolving in the following directions:

Intelligent Integration: Embedded sensors for real-time monitoring of current density and coating wear.
Expansion of Material Systems: Development of new highly conductive flexible composite materials.
Structural Design Optimization: Innovative solutions such as multilayer composite structures and expandable designs.
Eco-Friendly Coating Technologies: Low precious metal content coatings, renewable coating systems.

Selection and Usage Recommendations
When selecting flexible linear anodes, key considerations include:

Long-term conductive stability and fatigue strength of the substrate.
Coating adhesion and retention of catalytic activity under bending conditions.
Reliability of system connection methods (especially in dynamic usage scenarios).
Compatibility with the electrolyte medium (pH, temperature, composition).
Technical support and customization capabilities of the supplier.

Future

As industrial equipment moves toward compactness and integration, flexible linear anodes demonstrate unique advantages in improving electrochemical system efficiency and adapting to complex working conditions. In future innovative applications in fields such as new energy, environmental remediation, and advanced manufacturing, this technology is expected to become an important enabling tool for electrochemical engineering.

BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. possesses the research, development, and custom production capabilities for flexible linear anodes, offering full-process technical services from material selection and structural design to installation guidance. For more technical details or application consultation, please contact: sales02@nh-ti.com.

References

International Electrochemical Society. (2023). Technical Specification for Flexible Linear Anodes in Cathodic Protection Systems (Report No. IES‑CP‑2023‑05).
Zhang, H., et al. (2022). Mechanical‑Electrochemical Coupling Behavior of Flexible Titanium‑based Anodes under Dynamic Loading. Corrosion Science, 210, 110822.
European Federation of Corrosion. (2021). Guidelines for the Selection and Installation of Linear Anodes in Industrial Applications (EFC Publication No. 82).
Wang, L., & Chen, G. (2023). Advances in Coating Adhesion Technologies for Flexible Electrochemical Electrodes. Surface & Coatings Technology, 465, 129587.
