How Electrodes Enhance Electro-Oxidation in Wastewater Treatment?

In the field of wastewater treatment, electro-oxidation technology is gradually gaining attention as a promising solution. The core of this technology lies in the selection and design of electrode materials. The application of high-performance electrodes makes the electro-oxidation process more efficient and controllable, offering a new technical pathway for treating various industrial and municipal wastewaters.

Basic Principles of Electro-Oxidation

Electro-oxidation technology generates highly reactive species, such as hydroxyl radicals (·OH), through a series of electrochemical reactions triggered by applying an electric current to electrode surfaces. These reactive species effectively break down the molecular structures of organic pollutants in wastewater, gradually degrading them into harmless substances like carbon dioxide and water.

Compared to traditional biological treatment or chemical oxidation methods, electro-oxidation technology offers the following characteristics:

• Fast reaction rates, short treatment times.

• No need for large quantities of additional chemicals.

• Effective removal of refractory organic compounds.

• Flexible operational control adaptable to different water quality conditions.

Electrode Materials: The Core of Electro-Oxidation Technology

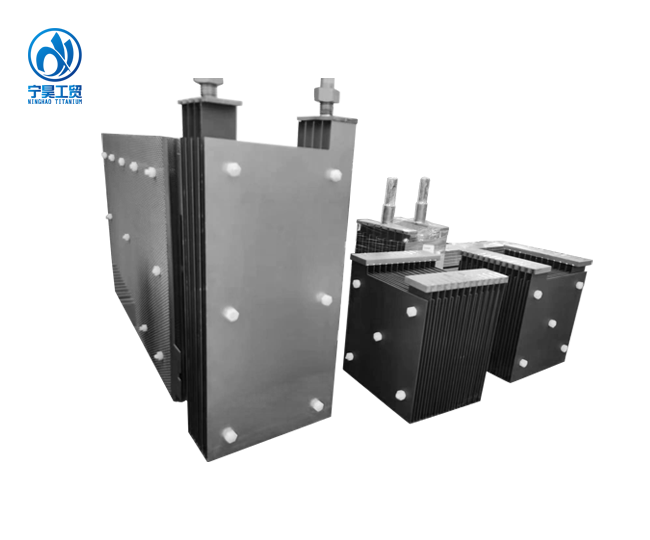

Electrodes are the core components of electro-oxidation systems, and their performance directly determines treatment effectiveness and operational costs. Currently, Mixed Metal Oxide (MMO) coated titanium electrodes have become the mainstream choice in electro-oxidation applications.

Structural Characteristics of MMO Coated Titanium Electrodes:

• Substrate Material: Industrial pure titanium (TA1/TA2) provides mechanical strength and corrosion resistance.

• Active Coating: Precious metal oxides such as ruthenium and iridium endow the electrode with excellent catalytic performance.

• Interface Bonding: Special processes ensure firm adhesion between coating and substrate.

​​​​​​​

Performance Advantages:

Applications of Electro-Oxidation Technology in Wastewater Treatment

Industrial Wastewater Treatment
Electro-oxidation technology is particularly suitable for industrial wastewater containing refractory organic compounds:

• Chemical wastewater: Benzene series, phenols, nitro compounds.

• Textile wastewater: Azo dyes, anthraquinone dyes.

• Pharmaceutical wastewater: Antibiotics, synthetic intermediates.

• Electroplating wastewater: Cyanides, complexing agents.

Advanced Treatment of Municipal Wastewater
For trace pollutants remaining after conventional treatment:

• Endocrine disrupting chemicals.

• Pharmaceutical and personal care product residues.

• Disinfection byproduct precursors.

Landfill Leachate Treatment
For high-concentration, complex composition leachate:

• COD removal rate up to 80-95%.

• Simultaneous oxidation of ammonia nitrogen.

• Significant color reduction.

System Design and Operational Considerations

Reactor Configurations

Operational Parameter Optimization

• Current Density: Adjust according to wastewater characteristics, typically 50-200 A/m².

• Electrode Spacing: 5-20 mm, affects energy consumption and mass transfer.

• Hydraulic Retention Time: Determined based on pollutant concentration.

• pH Control: Most systems achieve higher efficiency under acidic conditions.

Economic Analysis

Typical Case Study

Wastewater treatment project at a fine chemical plant:

• Wastewater Characteristics: COD 5000-8000 mg/L, containing various aromatic compounds.

• Treatment Scale: 50 m³/d.

• Electrode Configuration: MMO coated titanium anodes, plate-and-frame reactor.

• Treatment Results: >90% COD removal, B/C ratio increased to above 0.4.

• Operating Cost: 40% lower than the original Fenton process.

Technological Development Trends

Electrode Material Innovations

• Development of non-precious metal catalytic coatings.

• Large-scale application of nanostructured electrodes.

• Self-cleaning, anti-fouling electrode surface treatment technologies.

Process Intensification

• Coupling with ultrasound, photocatalysis, and other technologies.

• Application of pulsed current power supply modes.

• Optimization design of three-dimensional electrode reactors.

Intelligent Control

• Adaptive adjustment based on online water quality monitoring.

• Electrode life prediction and maintenance alerts.

• Remote operation and management platforms.

Conclusion

Electro-oxidation technology, as an efficient and clean wastewater treatment method, has broad prospects for industrial application. Continuous advancements in high-performance electrode materials are driving this technology toward greater economy and reliability. For enterprises facing challenges with high-concentration, refractory organic wastewater treatment, electro-oxidation technology deserves serious consideration.

To learn how electro-oxidation technology can be applied to your specific project, contact BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. for professional advice: sales02@nh-ti.com

References

1. Ministry of Environmental Protection of China. (2022). Technical Guidelines for Electrochemical Treatment of Industrial Wastewater.

2. Environmental Science & Technology. (2023). Electrochemical oxidation for industrial wastewater treatment: a comprehensive review.

3. BAOJI NINGHAO Technology Center. (2024). Performance Report of MMO Coated Titanium Anodes in Different Wastewater Systems.

4. Water Research. (2023). Advances in electrode materials for electrochemical wastewater treatment.

5. Chinese Research Academy of Environmental Sciences. (2022). Compilation of Treatment Technologies for Refractory Industrial Wastewater.
