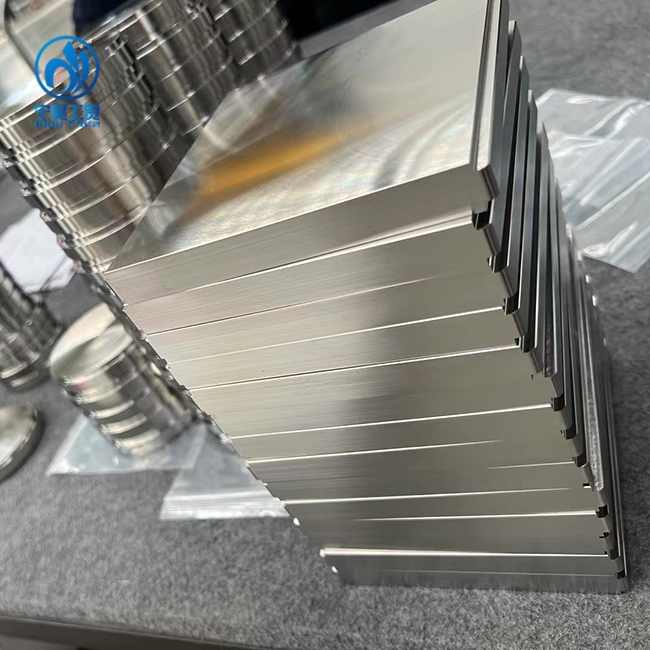

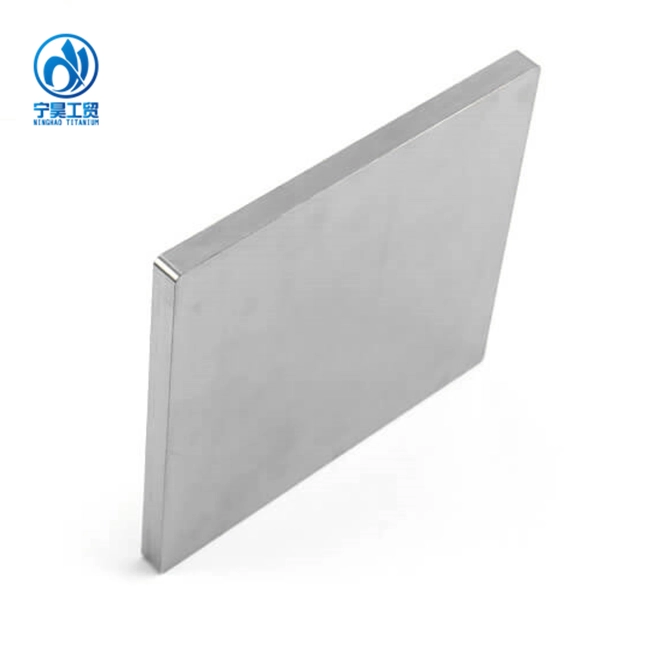

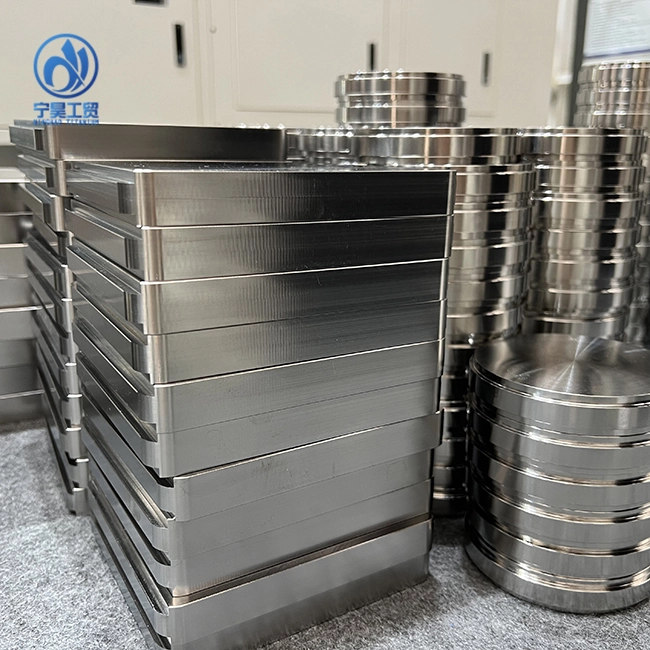

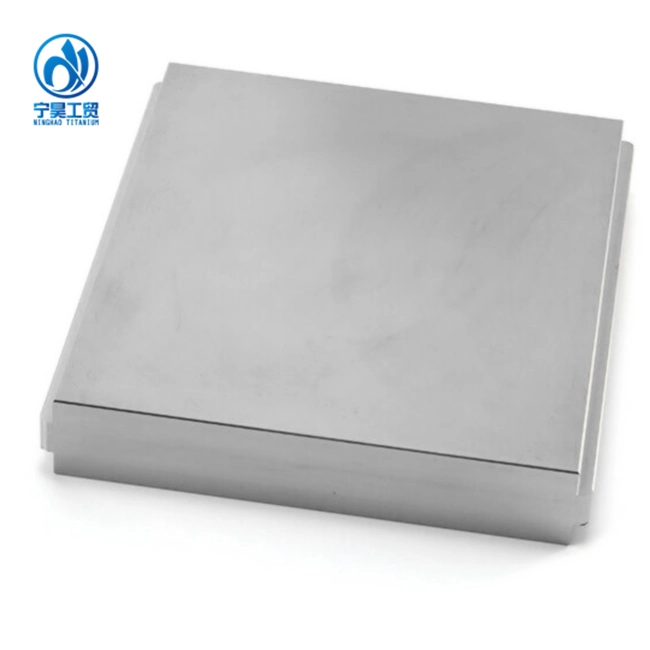

Medical Grade Titanium Disc
2.Dimension: 140*150*（10-25）mm
3.Standard: ASTM F136/ASTM F67
4.Processing: cutting& milling
5.Surface: Polished/Machined
6. Delivery time: 1-3 days ready for shipment.
7. Customizable: Dimension, Logo,etc.
- Product Description
Product Introduction
Medical grade titanium discs are premium, biocompatible titanium blanks designed for medical and surgical applications. Manufactured from high-purity titanium alloys, such as ASTM F67 and F136, these discs provide excellent corrosion resistance, mechanical strength, and biocompatibility.
These discs are ideal for producing surgical implants, prosthetics, orthopedic components, and precision medical devices. Available in various diameters and thicknesses, medical grade titanium discs meet strict quality standards for reliability and safety in medical applications.
 |  |  |  |
Key Features and Benefits
High Biocompatibility: Safe for implantation and contact with human tissue.
Corrosion Resistant: Maintains integrity under sterilization and in bodily environments.
Precision and Accuracy: Uniform thickness and surface finish for accurate machining.
Durable and Lightweight: Strong yet lightweight for long-lasting implants and devices.
Customizable Options: OEM solutions for specific medical applications.
Product Features
Material: Titanium Alloy (ASTM F67, F136)
Shape: Round discs (custom shapes available)
Diameter: 10 mm – 50 mm (customizable)
Thickness: 4 mm – 20 mm (customizable)
Surface Finish: Polished, matte, or passivated
Biocompatibility: ISO 10993 certified
Technical Specifications
| Property | Specification |
|---|---|
| Material | ASTM F67 / F136 Titanium |
| Diameter | 10 mm – 50 mm |
| Thickness | 4 mm – 20 mm |
| Hardness | HV 160–200 |
| Tensile Strength | 480–620 MPa |
| Yield Strength | ≥480 MPa |
| Elongation | ≥15% |
| Density | 4.43 g/cm³ |
| Biocompatibility | ISO 10993 |
| Surface Finish | Polished, Matte, Passivated |
Applications and Industries
Medical grade titanium discs are widely used in:
Surgical implants (plates, screws, joint replacements)
Prosthetics and orthopedic devices
Medical instrument manufacturing
Dental and maxillofacial implants
Research and development in medical device innovation
Quality Control and Testing
Tensile, yield, and hardness testing
Surface roughness and defect inspection
Dimensional accuracy checks
Chemical composition analysis
Biocompatibility verification
Packaging and Shipping
Individually wrapped for contamination-free handling
Protective packaging for safe transport
Optional sterilization available before shipment
Global shipping via air, sea, or express courier
FAQs
Q1: What diameters and thicknesses are available?
A1: Discs range from 10 mm to 50 mm in diameter and 4 mm to 20 mm in thickness, with OEM customization available.
Q2: Are these discs suitable for surgical implants?
A2: Yes, all discs meet ASTM F67/F136 standards and ISO 10993 biocompatibility requirements.
Q3: Can you provide custom alloy grades?
A3: Yes, we provide both ASTM F67 and F136 titanium alloy discs as per customer requirements.
Q4: Are these discs compatible with milling machines for implants?
A4: Yes, discs are manufactured to precise dimensions for use in CAD/CAM milling systems.
