What Are MMO Coated Titanium Anodes and Their Role in Protecting Metal Structures?
In the field of corrosion protection, Mixed Metal Oxide (MMO) coated titanium anodes are electrochemical components used in cathodic protection systems. These anodes help prevent metal structures from corrosion and are suitable for various applications including marine engineering, underground pipelines, and concrete structures. This article introduces the basic composition, working principles, and application value of MMO coated titanium anodes.

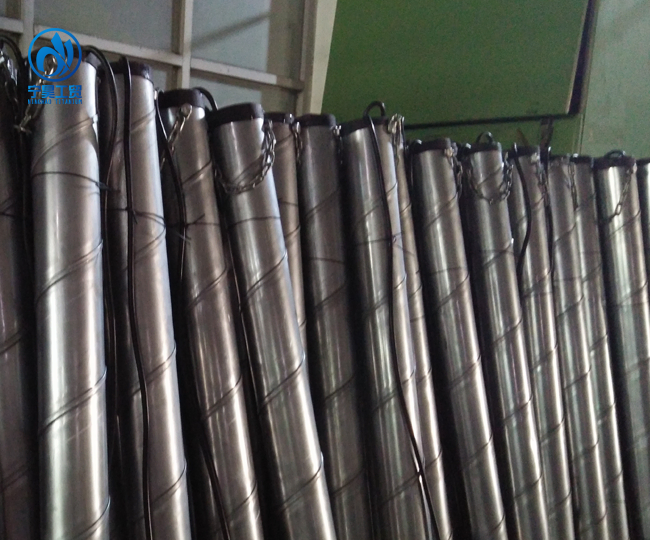

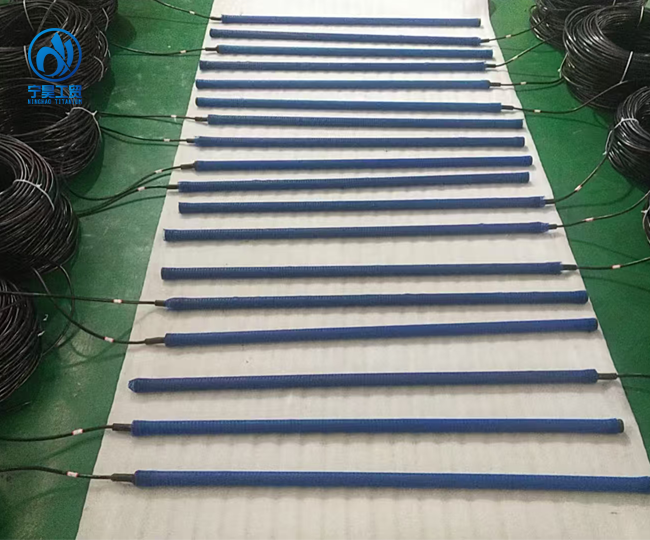

Composition of MMO Coated Titanium Anodes
MMO coated titanium anodes consist of a titanium substrate and a surface coating of mixed metal oxides. The titanium substrate itself has good corrosion resistance and mechanical strength, serving as the base material. The coating typically contains precious metal oxides such as ruthenium, iridium, or platinum, sometimes with the addition of tantalum or tin. This combination gives the anode good electrochemical properties, allowing it to be used for long periods in corrosive environments.
Key characteristics of MMO coated titanium anodes include:
Long service life
High electrical efficiency
Dimensional stability during operation
Ability to withstand high current densities
Suitable for both freshwater and seawater environments
Basic Principles of Cathodic Protection
Cathodic protection is an electrochemical technique used to control metal corrosion. The basic principle is to apply an electrical current to the metal structure, making it the cathode of an electrochemical cell, thereby suppressing corrosion reactions. In this process, MMO coated titanium anodes serve as the external anode, forming a circuit with the protected metal structure (the cathode), transferring the corrosion reaction to the anode.
There are two main types of cathodic protection systems:
Impressed Current Cathodic Protection (ICCP)
Uses an external power source to drive the protective current. MMO coated titanium anodes are suitable for these systems due to their ability to withstand high current densities and their long service life.
Sacrificial Anode Cathodic Protection
Uses more active metals such as zinc or magnesium as anodes. MMO coated titanium anodes are not typically used directly in sacrificial systems but can be used in hybrid configurations.
Main Application Areas
| Application | Specific Use |
|---|---|
| Marine Structures | Corrosion protection for offshore platforms, wind turbines, and ships |
| Underground Pipelines | Soil corrosion protection for oil, gas, and water pipelines |
| Concrete Structures | Protection of steel reinforcement in bridges and parking garages |
| Storage Tanks | Corrosion protection for above-ground and underground storage tanks |
| Water Treatment Facilities | Maintaining integrity of water and wastewater treatment infrastructure |
Key Benefits of Using MMO Coated Titanium Anodes
Extended Asset Lifespan: Slows corrosion, prolonging the service life of metal structures
Reduced Maintenance Costs: Anode durability reduces replacement frequency and long-term maintenance expenses
Enhanced Safety: Prevents structural degradation, ensuring the integrity of critical infrastructure
Environmental Protection: Reduces premature replacement of corroded structures, conserving resources and reducing waste
Regulatory Compliance: Meets strict corrosion protection standards in many industries
Conclusion
MMO coated titanium anodes play an important role in cathodic protection systems. Their good durability and electrochemical properties make them suitable for various corrosion protection applications including marine, underground, and concrete structures. As industries continue to focus on asset lifespan and maintenance costs, the application range of these anodes is expected to expand further.
For more information about MMO coated titanium anodes, please contact BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD.: sales02@nh-ti.com
References
Byrne, P., & Leng, J. (2018). Cathodic Protection of Steel Structures: Design and Application. CRC Press.
Revie, R. W. (Ed.). (2015). Uhlig's Corrosion Handbook (3rd ed.). John Wiley & Sons.
Baeckmann, W. V., Schwenk, W., & Prinz, W. (1997). Handbook of Cathodic Corrosion Protection. Gulf Professional Publishing.
Kasthurirangan, J., & Kuruvilla, A. K. (2020). Cathodic Protection: Industrial Solutions for Protecting Against Corrosion. Butterworth-Heinemann.
Cicek, V. (2014). Cathodic Protection: Industrial Solutions for Protecting Against Corrosion. Scrivener Publishing.
