Platinum plated Titanium Anodes for Hard Chrome Plating
Plating: Pure Platinum (≥99.9%).
Plating Thickness: 3–10 microns.

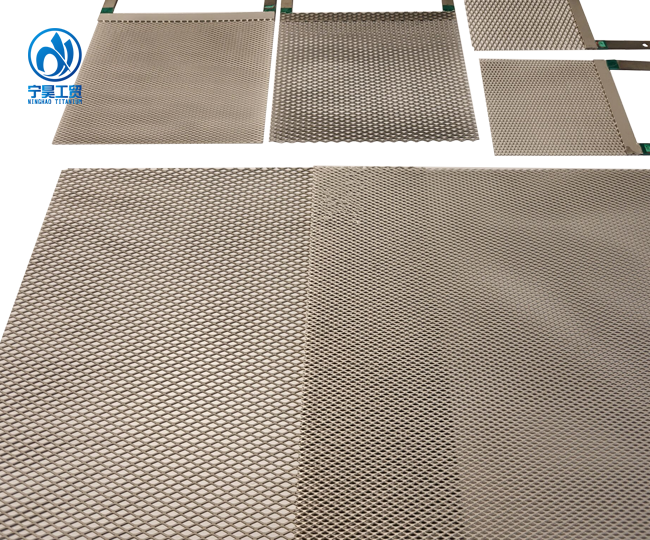

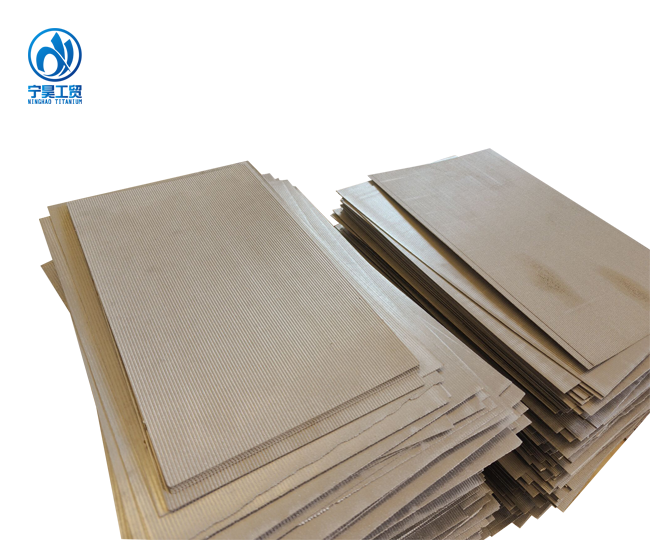

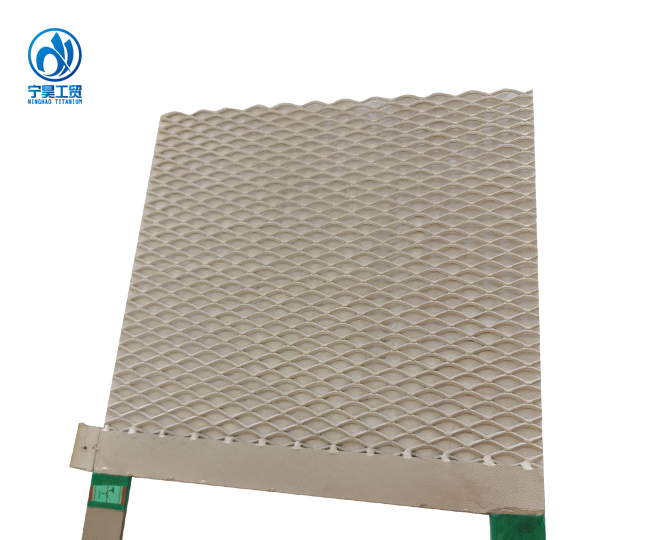

Form: Solid plate or expanded mesh.
Current Density: 1000–3000 A/m².
Bath Chemistry: Chromic acid (H₂CrO₄) plating solutions.
Corrosion Resistance: Excellent under aggressive conditions.
Service Life: ≥2–4 years depending on plating duty.
- Product Description
Platinum Plated Titanium Anodes for Hard Chrome Plating: Elevate Your Electroplating Performance
BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. is a leading manufacturer and supplier of Platinum plated Titanium Anodes for Hard Chrome Plating. Our cutting-edge anodes offer superior durability, consistent plating performance, and enhanced energy efficiency. With our expertise in titanium-based products and commitment to quality, BAOJI NINGHAO delivers reliable solutions that meet the demanding needs of industrial electroplating processes.
Product Introduction
Our products are engineered to revolutionize your hard chrome plating operations. These high-performance anodes combine the strength of titanium with the catalytic properties of platinum, resulting in a product that delivers exceptional plating quality, extended lifespan, and improved process efficiency.
Key Features and Benefits
1. Superior Durability: Titanium base ensures long-lasting performance in harsh plating environments.
2. Uniform Plating: Platinum coating promotes even current distribution for consistent results.
3. Energy Efficiency: Lower overpotential compared to lead anodes, reducing power consumption.
4. Chemical Resistance: Excellent resistance to corrosive plating solutions.
5. Dimensional Stability: Maintains shape during operation, ensuring consistent plating thickness.
6. Reduced Contamination: Minimal sludge formation, leading to cleaner plating baths.
7. Easy Maintenance: Simple cleaning process extends anode life and maintains performance.
OEM and Customization Services: Customized Geometries and Exact Dimensions
At BAOJI NINGHAO, we understand that one size doesn't fit all. Our team of experienced engineers works closely with clients to design and manufacture Platinum plated Titanium Anodes for Hard Chrome Plating that meet specific requirements:
· Custom shapes and sizes to fit unique plating tank configurations
· Tailored platinum coating thickness for optimized performance
· Specialized current density calculations for specific applications
· Adjustable anode-to-cathode distance recommendations
R&D experience
customized solution cases
strict quality inspection processes
hour customer response service
· Substrate Material: ASTM B265 Grade 1 or 2 Titanium
· Coating: 99.99% Pure Platinum
· Coating Thickness: 2.5-7.5 µm (customizable)
· Operating Current Density: Up to 15 A/dm²
· Operating Temperature: Up to 70°C (158°F)
· pH Range: 0-14
· Lifetime: 5-10 years (depending on operating conditions)
Applications and Industries
Our products are ideal for:
1. Automotive: Cylinder liners, piston rings, shock absorbers
2. Aerospace: Landing gear components, hydraulic actuators
3. Heavy Machinery: Hydraulic rods, printing rollers
4. Industrial Equipment: Textile machinery, paper mill rollers
5. Marine: Propeller shafts, valve stems
6. Oil & Gas: Drill bits, pump components
Tips and Tricks
· Maintain proper anode-to-cathode spacing for optimal current distribution
· Regularly clean anodes to remove accumulated deposits
· Monitor and maintain correct bath chemistry for best results
· Implement proper racking techniques to ensure uniform plating

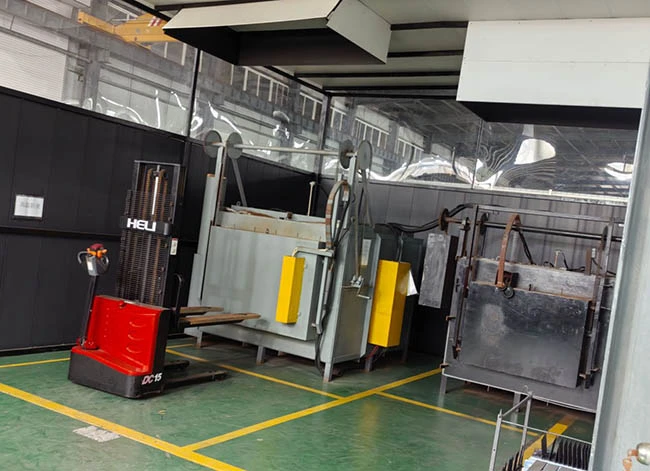

Manufacturing Process
1. Titanium Base Preparation: Precision cutting and shaping of titanium sheets
2. Surface Treatment: Etching and cleaning to ensure optimal adhesion
3. Platinum Coating: Advanced electroplating or physical vapor deposition (PVD)
4. Quality Inspection: Rigorous testing for coating thickness and adhesion
5. Final Assembly: Attachment of electrical connections and mounting hardware
How to Choose Products and Why Choose Products Made by Us
When selecting product, consider:
1. Plating tank dimensions and configuration
2. Required current density for your application
3. Expected lifespan and replacement frequency
4. Compatibility with existing equipment
Choose BAOJI NINGHAO for:
· Industry-leading expertise in titanium-based products
· Customization capabilities to meet specific requirements
· Rigorous quality control and testing procedures
· Comprehensive technical support and after-sales service
· Commitment to innovation and continuous improvement
Certifications and Compliance
· ISO 9001:2015 Quality Management System
· ISO 14001:2015 Environmental Management System
· RoHS and REACH compliant
· ASTM and MIL-SPEC adherence
Quality Control and Testing
Our quality assurance process includes:
1. Raw material inspection and verification
2. In-process quality checks during manufacturing
3. Coating thickness measurement using X-ray fluorescence (XRF)
4. Adhesion testing (ASTM D3359)
5. Electrochemical performance testing
Final visual and dimensional inspection
Packaging and Shipping
· Custom protective packaging to prevent damage during transit
· Wooden crates or pallets for bulk orders
· Express shipping options available for urgent requirements
· Full documentation including material test reports (MTRs)
Testimonials and Case Studies
"BAOJI NINGHAO's Platinum plated Titanium Anodes have significantly improved our hard chrome plating efficiency. We've seen a 30% reduction in energy consumption and consistently higher quality finishes." - John D., Production Manager, Automotive Parts Manufacturer
Case Study: Aerospace Component Manufacturer
Challenge: Inconsistent plating quality and frequent anode replacements
Solution: Implemented custom-designed Platinum plated Titanium Anodes
Results: 40% increase in anode lifespan, 25% improvement in plating uniformity
FAQs
1. What is the expected lifespan of your Platinum plated Titanium Anodes?
Under normal operating conditions, our anodes typically last 5-10 years.
2. Can these anodes be used in existing plating setups?
Yes, they are designed to be compatible with most standard hard chrome plating systems.
3. How do I maintain the anodes for optimal performance?
Regular cleaning and proper bath chemistry maintenance are key. We provide detailed care instructions with each order.
4. What is the minimum order quantity (MOQ) for custom anodes?
Our MOQ varies based on the complexity of the design. Contact us for a quote on your specific requirements.
5. Do you offer technical support for implementation?
Absolutely. Our team of experts provides comprehensive support from design to installation and beyond.
Contact Us
Ready to enhance your hard chrome plating operations? Reach out to our team of experts for personalized assistance and quotes.
Email: sales02@nh-ti.com
WhatsApp: +86 13991730175
BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD - Your trusted partner for high-performance Platinum plated Titanium Anodes for Hard Chrome Plating.
