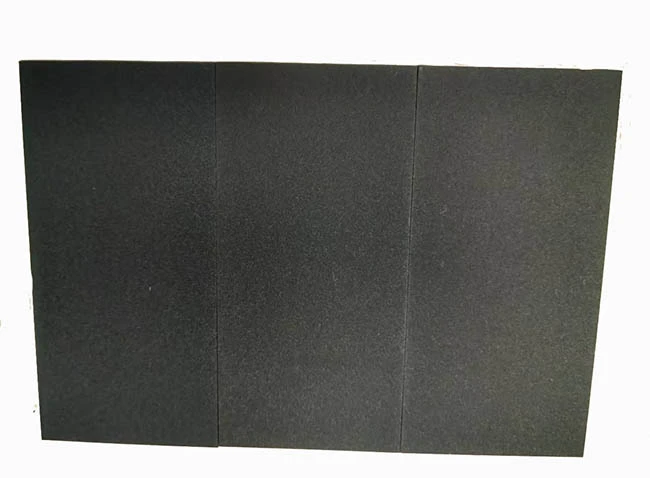

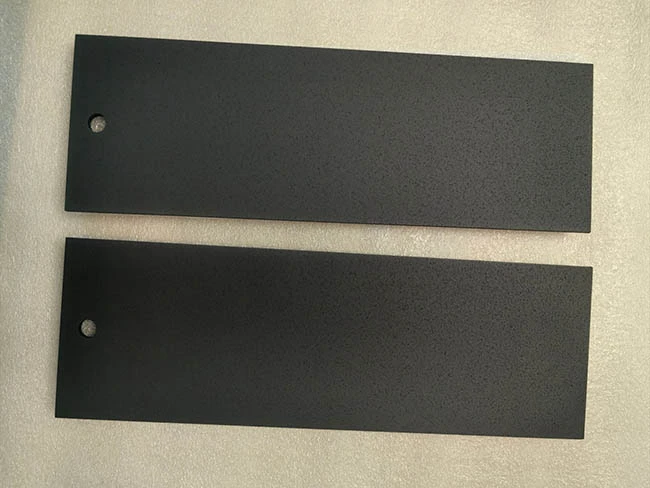

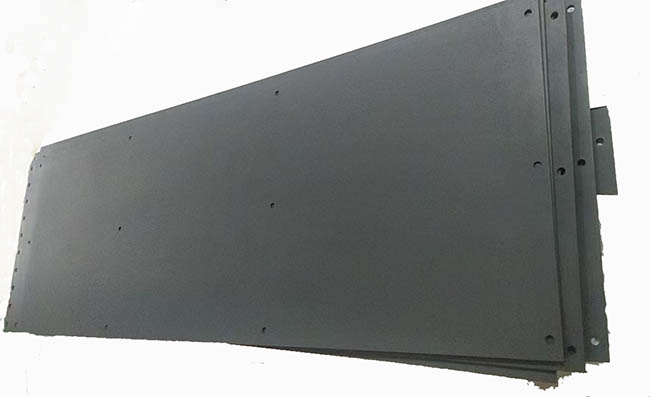

lridium Coated Titanium Anode for PCB Reverse Pulse Copper Plating
Coating: Iridium, tantalum（oxide）
Form: Plate, custom sizes
Current Density: 500-800A/m².
Pulse Compatibility: Reverse pulse or DC compatible.
Plating Bath: CuSO₄ + H₂SO₄.
Coating Thickness: 2–5 microns.
Service Life: ≥2–4 years.
Application: High-precision PCB copper via and pad plating.
- Product Description
BAOJI NINGHAO INDUSTRY AND TRADE CO., LTD. is a leading manufacturer and supplier of lridium Coated Titanium Anode for PCB Reverse Pulse Copper Plating. Our advanced anodes offer superior performance and longevity, ensuring consistent, high-quality plating results for PCB manufacturers. With our expertise in titanium-based products and commitment to innovation, we deliver customized solutions that meet the demanding requirements of the electronics industry.
Product Introduction
Revolutionize your PCB manufacturing process with our high-performance Iridium Coated Titanium Anodes for PCB Reverse Pulse Copper Plating. These anodes are specifically designed to enhance the efficiency and quality of copper plating in advanced PCB production. By leveraging the unique properties of iridium and titanium, our anodes provide exceptional durability, conductivity, and resistance to corrosion, making them the ideal choice for reverse pulse plating applications.
Key Features and Benefits
1. Enhanced Durability: Our Iridium Coated Titanium Anodes offer exceptional longevity, reducing downtime and replacement costs.
2. Superior Conductivity: The iridium coating ensures optimal electrical performance, resulting in uniform copper deposition.
3. Corrosion Resistance: Titanium substrate combined with iridium coating provides excellent resistance to harsh plating environments.
4. Improved Plating Quality: Achieve consistent, high-quality copper plating for even the most complex PCB designs.
5. Cost-Effective: Long lifespan and reduced maintenance translate to significant cost savings over time.
6. Versatility: Suitable for various PCB types, including high-density interconnect (HDI) and multilayer boards.
OEM and Customization Services: Customized Geometries and Exact Dimensions
At BAOJI NINGHAO, we understand that every PCB manufacturer has unique requirements. Our team of experts works closely with clients to design and produce Iridium Coated Titanium Anodes tailored to specific plating systems and production needs. We offer:
· Custom anode shapes and sizes
· Adjustable iridium coating thicknesses
· Specialized mounting options
· Optimized current density configurations
Our flexible manufacturing process ensures that you receive anodes perfectly suited to your reverse pulse copper plating equipment and PCB specifications.
R&D experience
customized solution cases
strict quality inspection processes
hour customer response service
· Material: Grade 1 or Grade 2 Titanium
· Iridium Coating Thickness: 2.5-10 μm (customizable)
· Titanium Substrate Purity: ≥99.6%
· Operating Current Density: Up to 100 A/dm²
· pH Range: 0-14
· Temperature Resistance: Up to 80°C
· Typical Lifespan: 2-4 years (depending on operating conditions)
Applications and Industries
Our lridium Coated Titanium Anode for PCB Reverse Pulse Copper Plating are ideal for:
· High-volume PCB manufacturers
· Producers of complex, multilayer PCBs
· HDI board manufacturing
· Flexible and rigid-flex PCB production
· Advanced electronics for automotive, aerospace, and telecommunications industries
Tips and Tricks
To maximize the performance and lifespan of your Iridium Coated Titanium Anodes:
1. Maintain proper electrolyte balance and pH levels
2. Implement regular cleaning procedures to prevent build-up
3. Monitor current distribution and adjust as needed
4. Ensure proper anode spacing in plating tanks
5. Conduct periodic inspections for signs of wear or coating degradation

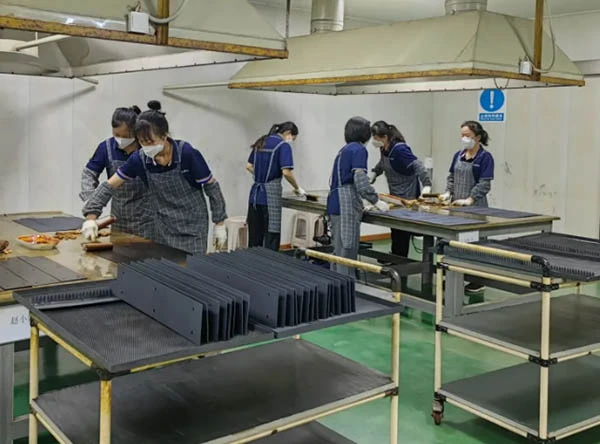

Manufacturing Process
Our state-of-the-art manufacturing process ensures the highest quality Iridium Coated Titanium Anodes:
1. Precision cutting and shaping of high-purity titanium substrates
2. Rigorous surface preparation and cleaning
3. Advanced iridium oxide coating application using proprietary techniques
4. Controlled heat treatment for optimal coating adhesion
5. Comprehensive quality control and performance testing
How to Choose Products and Why Choose Products Made by Us
When selecting Iridium Coated Titanium Anodes for PCB Reverse Pulse Copper Plating, consider:
1. Compatibility with your plating system
2. Required current density and distribution
3. Desired anode lifespan and replacement frequency
4. Customization options for optimal performance
Choose BAOJI NINGHAO for:
· Industry-leading expertise in titanium-based products
· Cutting-edge manufacturing technology
· Rigorous quality control standards
· Flexible customization options
· Comprehensive technical support and after-sales service
Certifications and Compliance
Our Iridium Coated Titanium Anodes meet or exceed industry standards:
· ISO 9001:2015 Quality Management System
· RoHS Compliant
· REACH Compliant
· CE Marked (where applicable)
Quality Control and Testing
We employ a comprehensive quality assurance program:
· Raw material verification and testing
· In-process inspections at each manufacturing stage
· Coating thickness and uniformity measurements
· Electrochemical performance testing
· Accelerated life testing simulations
Packaging and Shipping
Our Iridium Coated Titanium Anodes are carefully packaged to ensure safe transport:
· Custom-designed protective casing
· Shock-absorbent materials to prevent damage
· Moisture-resistant packaging for long-term storage
· Detailed handling and installation instructions included
· Expedited shipping options available for urgent orders
Testimonials and Case Studies
"BAOJI NINGHAO's Iridium Coated Titanium Anodes have significantly improved our PCB plating quality and reduced our maintenance costs." - John D., Process Engineer at Global PCB Solutions
"The customization options offered by BAOJI NINGHAO allowed us to optimize our plating system for maximum efficiency." - Sarah L., Production Manager at TechPrint Industries
FAQs
1. What is the typical lifespan of your Iridium Coated Titanium Anodes?
Our anodes typically last 3-5 years, depending on operating conditions and maintenance.
2. Can you provide anodes for specific plating tank dimensions?
Yes, we offer customized sizes and shapes to fit any plating system configuration.
3. Are your anodes compatible with all types of copper plating electrolytes?
Our anodes are designed to work with a wide range of electrolyte chemistries. Contact us for specific compatibility information.
4. How do I determine the right current density for my application?
Our technical team can assist you in calculating the optimal current density based on your PCB specifications and production requirements.
5. What maintenance is required for these anodes?
Regular cleaning and inspection are recommended. We provide detailed maintenance guidelines with each order.
Contact Us
Ready to elevate your PCB manufacturing process with our Iridium Coated lridium Coated Titanium Anode for PCB Reverse Pulse Copper Plating? Contact our expert team today for personalized advice and quotations.
